Ultimate Guide to High Definition MP3 Players with Lossless Audio Features
Tags: MP3 Player
Ultimate Guide to High Definition MP3 Players with Lossless Audio Features
Share

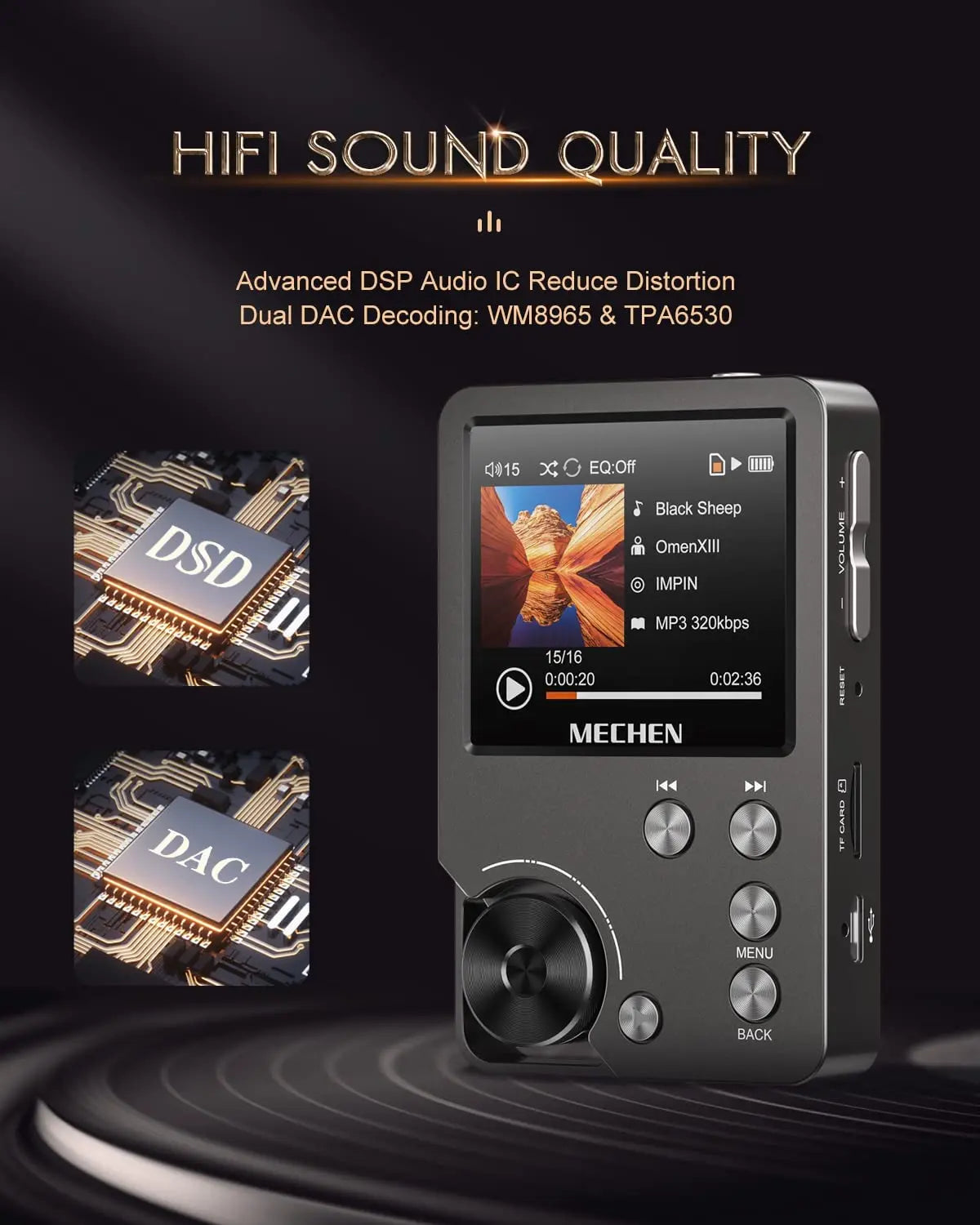

This MP3 player boasts expertly designed DSP audio technology, in addition to top-of-the-line WM8965 and TPA6530 DAC chips, providing an unparalleled listening experience with lossless audio quality. It is compatible with an array of audio formats, such as MP3, WMA, WAV, APE, FLAC, ACC, OGG, and DSD 128, allowing for a diverse range of high definition music playback.
Display high-resolution lyrics and song titles on the 2.0-inch LCD screen with a 320*240 resolution. Easy and intuitive UI for user-friendly operation.

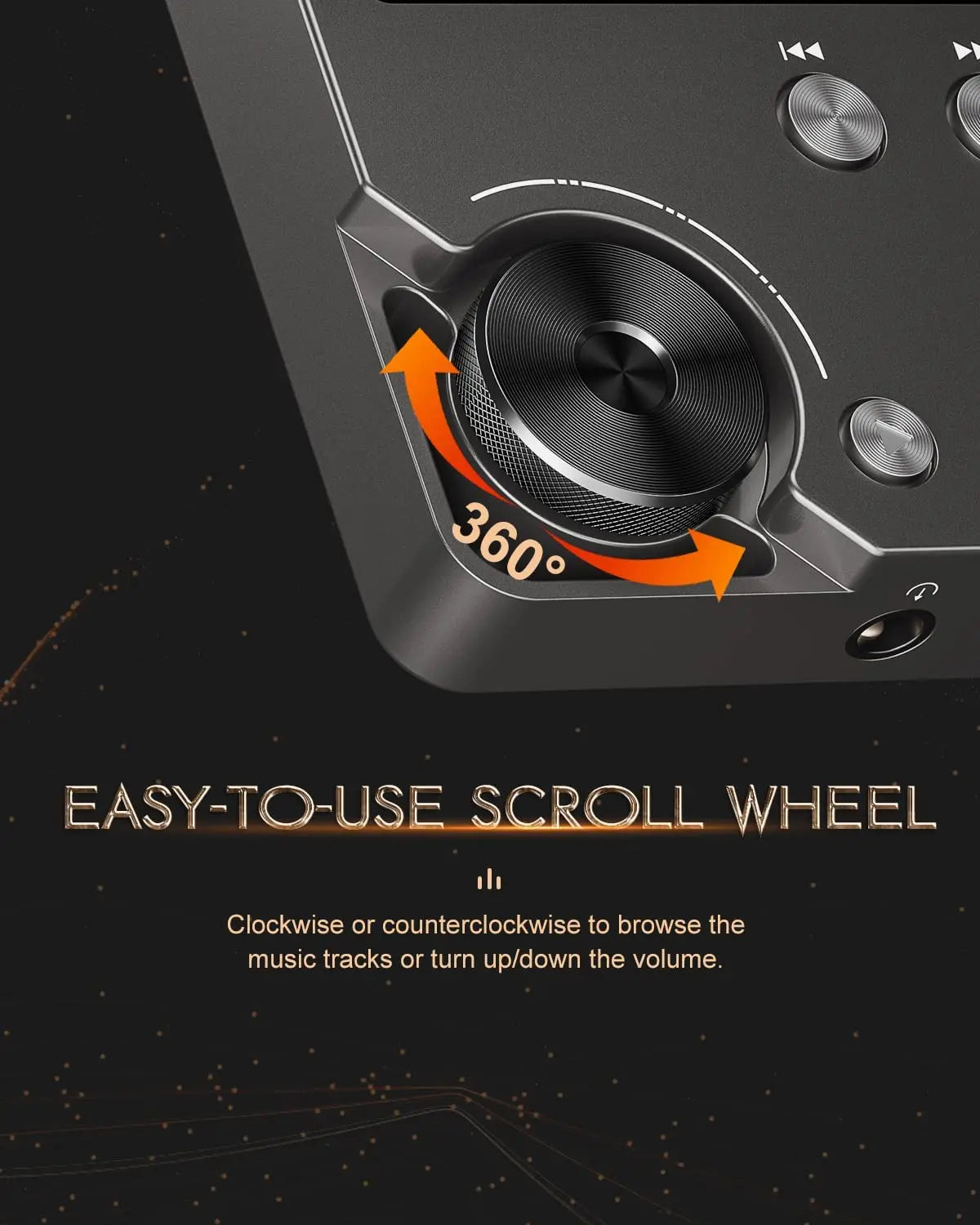

Elegant and portable, this music player features a high-precision CNC aluminum alloy shell that won't leave fingerprints. Quickly find and control tracks with the unique scroll wheel, while the independent menu and return keys provide easy operation with a one-key lock screen function.
Maximize playback time with the M30 player's 1500 mAh battery, fully charged in 2 hours for up to 25 hours of continuous play. Add a 64GB SD card for up to 256GB of storage to easily manage your song files.
The player is compact, measuring 2.2*0.6*3.5 inches and weighing 176g, making it easy to carry in your pocket.
Notes:
1. HIFI player without built-in memory, including a 64GB memory card, enough to store the music files you need, for larger, the player supports up to 256GB memory card.
2. Player music storage limit of 4000, beyond the tracks will not disappear, you can view the complete music files and list them at the folder function.
3. The player does not have Bluetooth and WIFI functions. [Only for music]
4. Player accessories do not include headphones, it is recommended to use professional high-definition headphones, which can better reflect the sound quality effect.
5. Player album cover pixel limit is 640 * 640, if, beyond this pixel, the artist and album may not appear on the screen.
6. The ACC files supported by the player can only be played in mono, not stereo.
7. The player does not support DTS 5.1 multi-channel movies.
8. We have uploaded the user guide on the detail page, please download and read it.
Features FAQ

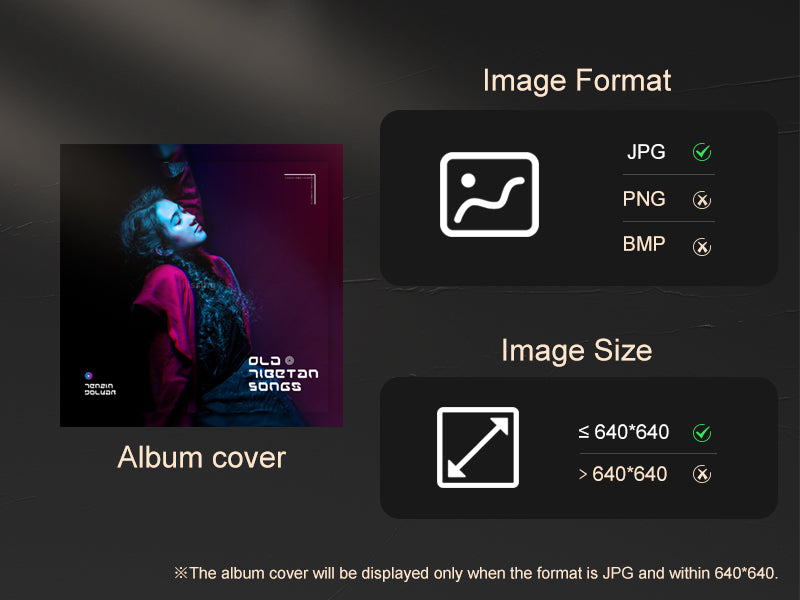

Album cover
If the album cover image does not appear, please check
If your album does not appear on the cover, please check the aspect ratio and the image size.
Image formats are accepted in JPG format only, with a pixel size of 640✖640
You can use third-party music assistance tools on the web to edit, of which we recommend the name: Kid3

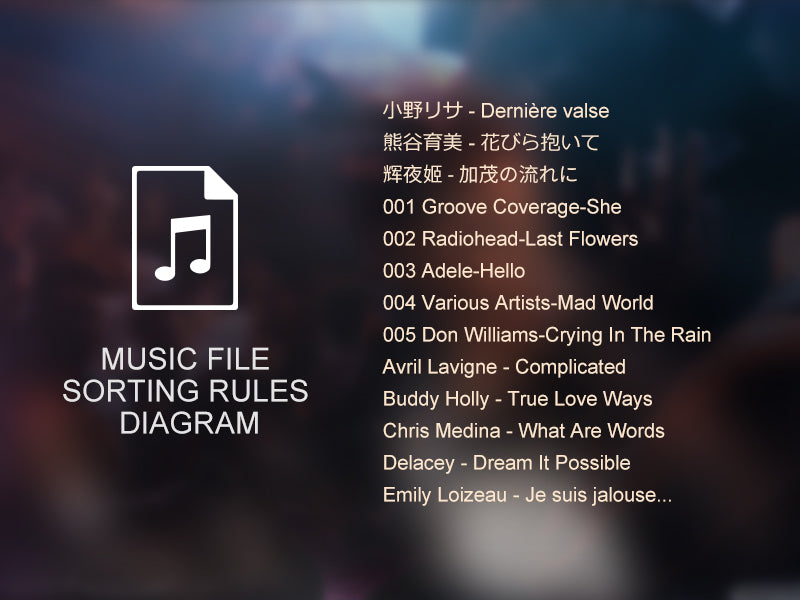

Music file sorting rules
Music files are sorted by ASCII code rules
In short: music names are displayed first in Chinese/Japanese, followed by lowercase to uppercase numbers, and finally by the letters A-Z in order.
If you need to sort the order of songs, you need to name the track titles for sorting.
Recommended third-party tool: Kid3

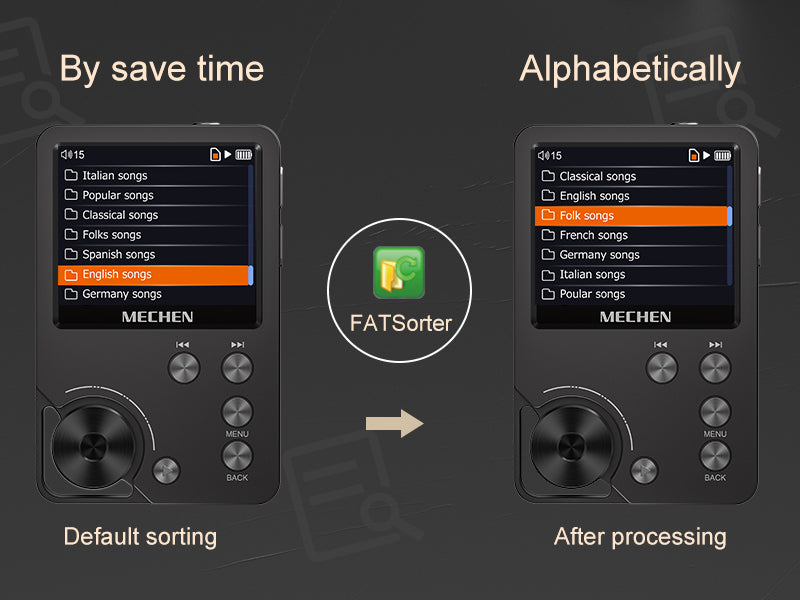

Folder sorting rules
Using the FAT Sorter Tool
Folder sorting rules are based on the time of creation, i.e. the earliest saved folders are displayed at the top and the last created folders are displayed at the bottom.
However, you can use the FAT Sorter tool to manage this so that your folders are sorted alphabetically correctly.

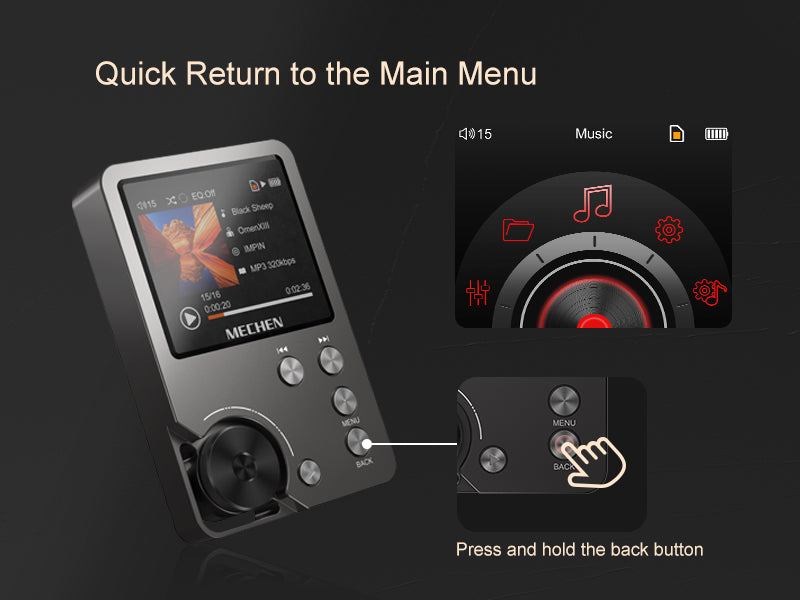

Shortcut button function
One button to return to the home menu
Some customers mentioned that in order to return to the home page, they have to click the back button several times, which is tedious.
Simply: long press the back button. Then you can go back to the home page directly.

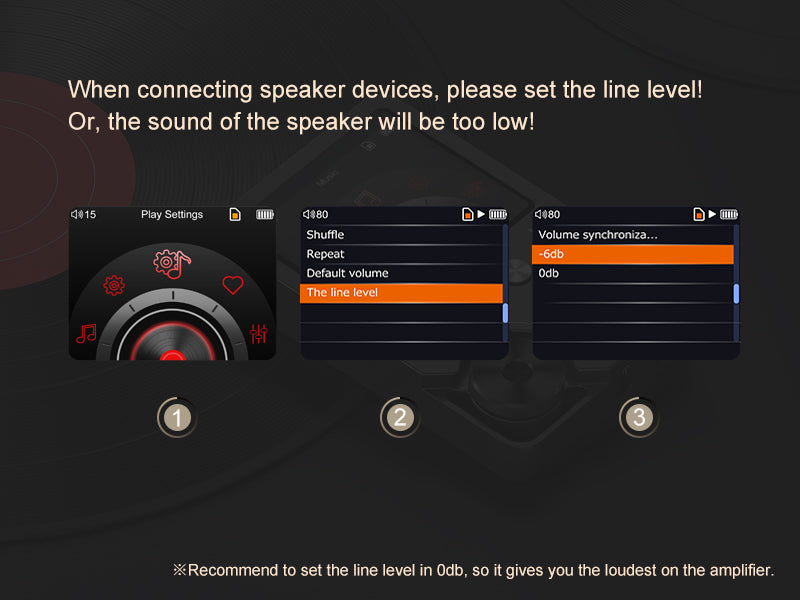

Set line level
Do not forget to set the line level
Some customers mentioned that when they use their HIF players to connect to speakers, the sound is very low.
One of the reasons is that the line level is not set.
You can enter the player home page, find the playback settings, find the line level, the default volume synchronization, you can set it to -6db or 0db, so that the amplifier audio sounds better.
Specification
External Memory: Yes
Balanced Out: Yes
Audio Format Support: MP3, WAV, APE, FLAC, WMA, DSD
Hign-concerned Chemical: None
Dimensions (WxHxD): 8.6*1.6*5.6cm
Battery Specification: lithium battery
Display Size: 2.0 inches
Supports FM: No
Have Speakers or not: No
Bluetooth: No
Battery Life: 10 - 20 hours
WIFI: No
Operation Mode: Touch Tone
Supports Recording Function: No
Screen: Yes
Supports EBook Reading: No
DSP: JULI2167
Package: Yes
DAC: ak4376

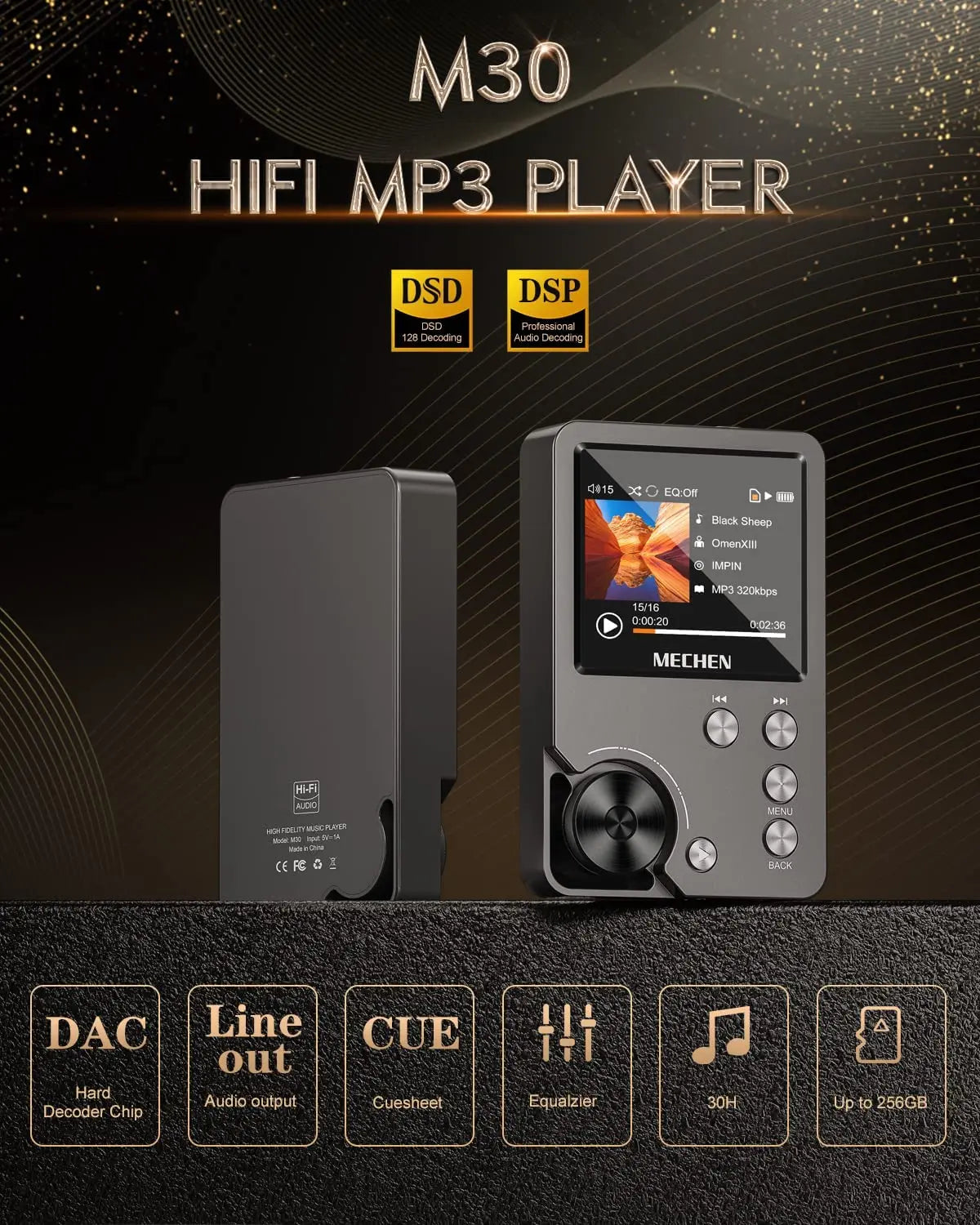

Model Number: M30
Style: Pure Audio MP3
Body Material: Metal
Certification: CE, FCC
Signal Noise Ratio: ≥100dB
Storage Type: Flash Memory
Specifications
Screen Size |
2.0inch |
Screen Resolution |
IPS 320*240 |
S/N |
≥100dB |
Headphone output power |
≥80mW |
Audio output |

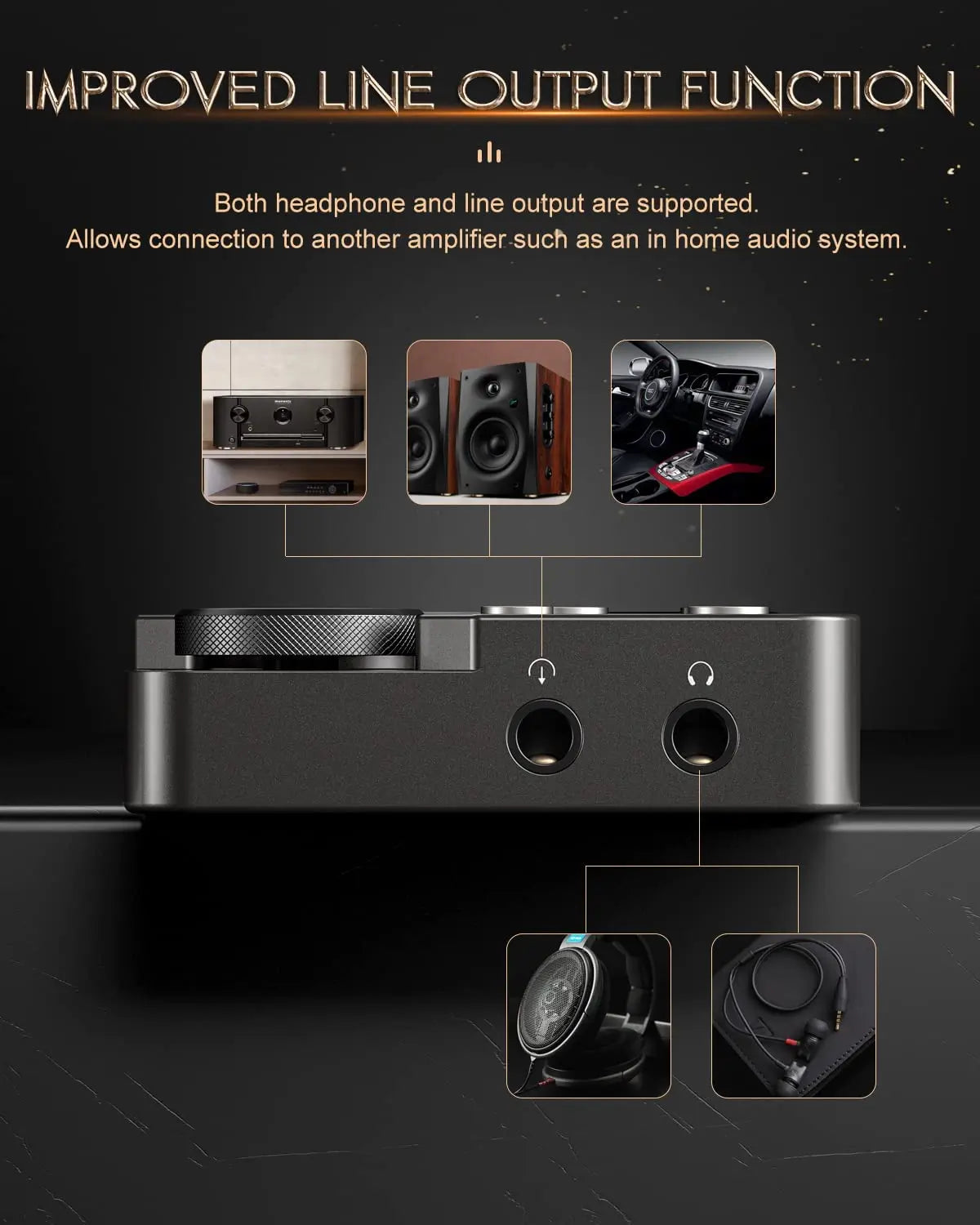

3.5mm headphone & line output |
Audio format |
MP3 WMA WAV APE FLAC AAC OGG AIFF DSD64 DSD128 DSD256 |
Line output |
Volume synchronization,-6DB,0DB optional |
Volume level |
100-level digital volume control method |
Battery capacity |
3,7V 1500mAh |
USB port |
MICRO 5PIN USB2.0 |
Weight |
176g |
Package Includes |
1 * Hifi Music Player 1 * USB Cable 1 * 64GB Memory Card 1 * User Manual |
everything is fine, good quality, 5 days delivery, as promised +++++
I never had a chance to buy such a heavy and original device
I bought to connect in my car.
Now it remains to test and to discover the quality of son hidden inside this very heavy pet.
I recommend 100%
The FLAC format was not recognized. The solution: go to optionis to format disk, Factory Settings, and then Upgrade Firmware on the manufacturer's website. Sound correct with FIIO F1HS headphones
Works well. But it is not for exquisite in total audio quality. I 've tried it with files. DSF and Marantz PM7003 amplifier, use the balanced output, but there was distortion. The-mp3 sounded better but I wanted to use my files without lossf type.
the shipment was very fast, the quality of the sound, well....very, very good! yes there is the annoyance with sequence of the songs, but it is just a little problem. I appreciate a lot the the focus of this player is the quality of music, no bluetooth, no streaming, no ebook reader (that I consider very useless with small screens), no radio, only a job to do, but done very well!
I was a bit worried of few reviews writing the sound was not so good, maybe they used not very good files or maybe not very good headphones... beacuase I found it outstanding! Surely a DAP to buy without any doubt!
